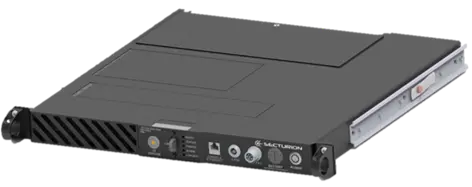

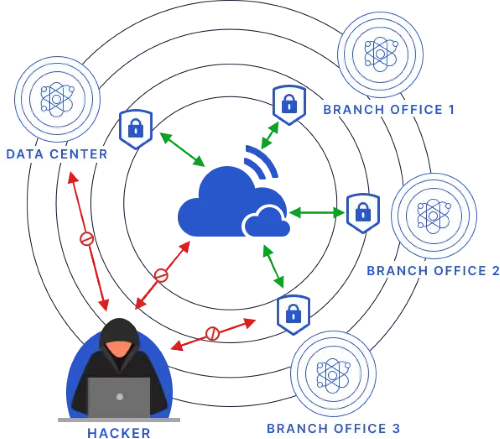

The DarkLink™-400G EDE is an enterprise-level Encryptor designed to meet DoD Ethernet Data Encryption (EDE) specifications. DarkLink™-400G EDE utilizes Secturion’s MESH technology to set up a safe, private network between multiple sites.
Key Features
400 Gbps full-duplex (800 Gbps aggregate) MACsec EDE
Data is delivered securely and swiftly with < 2 microseconds latency
Transparent to network and end-users
Comprehensive built-in self-test
Layer 2 network encryptor
Simple setup, operation, and maintenance
Secure firmware upgradeable to future protocols and cryptographic standards
Fail-safe and tamper features
TRANSEC & Ethernet Transport Tunneling (ETT)
Comprehensive built-in test
Hardware-based encryption
Manufactured exclusively in the United States as part of a controlled supply chain
Applications
Data center to Data Center
Government Facilities
Mobile data centers
Multi-site corporate/contractor networks
Big data applications
Easy Set Up and Maintenance
Easy to install
Works with legacy, current, and future Ethernet networks
No maintenance required
Network Interfaces
Data Interface I/O Connections
Industry-standard 400G QSFP-DD, SR or LR (Red and Black)
Remote Management Interface
SNMP/HTTPS via SFP+
Ethernet RJ-45 10/100/1000Mbps
Front Panel Console Interface
Ethernet RJ-45 10/100/1000 Mbps
Key Management Interface
EKMS-308
Security
AES-256 bit
Cryptographic Ignition Key (CIK) for secure operation
Key Loading: KMI OTNK
PDE enabled, variant 7
Anti Tamper Design
Fail-safe and tamper features
Physical
Dimensions: (W x H x D) 19" x 1.7" x 21.5"
Mounting: Industry standard 19 in. wide x 1U High x 24 to 36 in. deep slide rails
Weight: 21 lbs.
Power:
660 Watts
110-240V AC
Dual hot-swappable AC-DC power supplies
Battery:
AA Lithium, 3.6VDC
User Replaceable
Fans Hot-swappable fans (3) bank
Environment
Operating Temperature: -5° to 45° C
Storage Temperature: -55° to 85° C
Humidity: 5% to 95% non-condensing
Combining DarkStor and DarkLink offers an unparalleled end-to-end security solution
